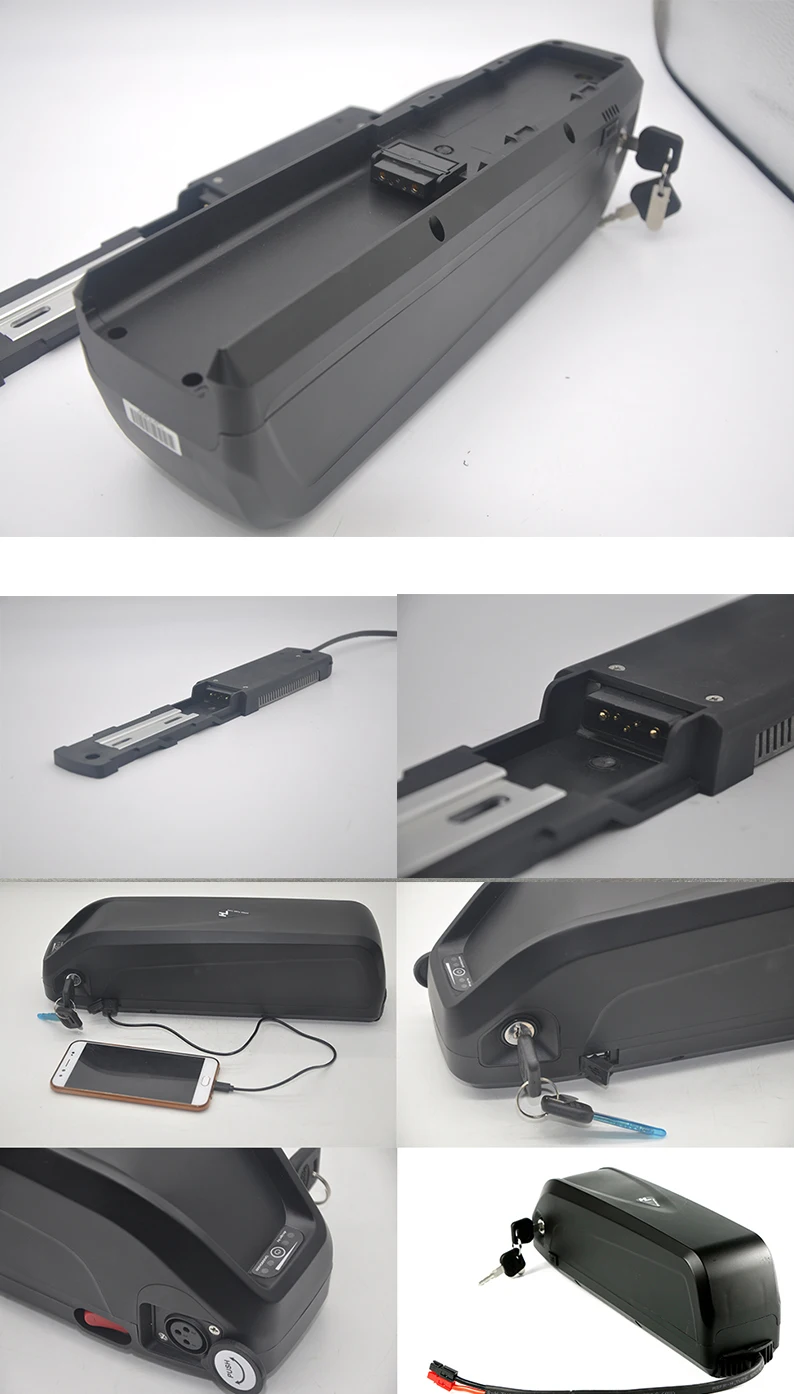

Downtube Lithium Ion Battery for Electric Bicycles: 36V (10Ah, 15Ah)
Introducing our downtube lithium ion battery designed specifically for electric bicycles:
36V Battery Options: Available in 10Ah and 15Ah capacities to meet your energy needs.

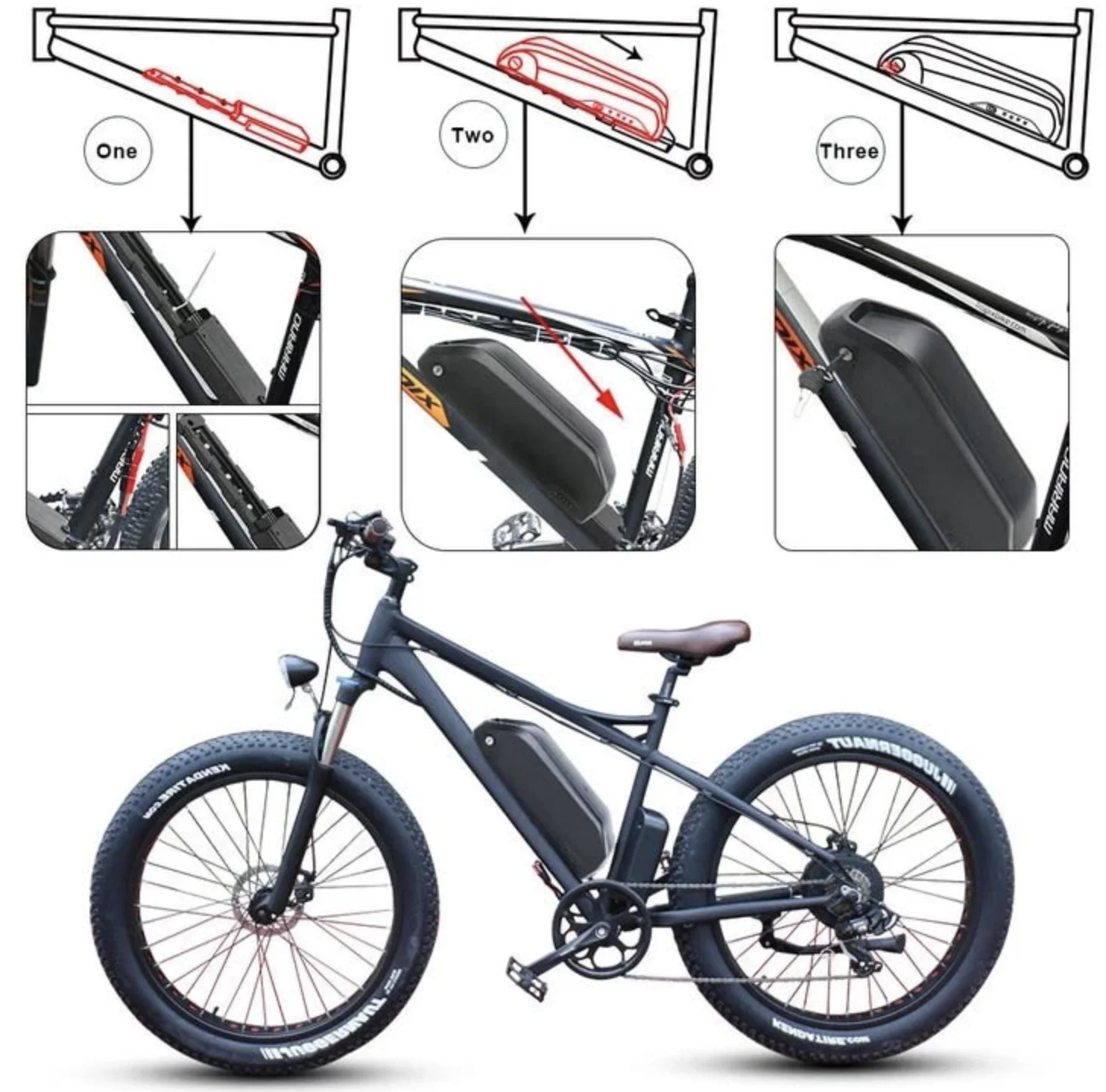

Hailong Design: Sleek and compact, perfect for mounting on the downtube of your bike.
Lithium Ion Technology: Ensures enhanced safety, thermal stability, and a longer lifespan compared to traditional batteries.
Lightweight Construction: Optimized for easy installation without adding unnecessary weight to your bicycle.
Low Maintenance: Designed for hassle-free operation with minimal upkeep required.
This 36V downtube lithium ion battery is the ideal solution for powering your electric bicycle efficiently and reliably.
High Quality Ebike Battery has excellent performance with diversity models. Long cycle life and safety during your
usage.
- Battery voltage, capacity and shape can be customized.
- Fit for 250W, 350W, 500W, 750W Bafang motor.
- 20A BMS or customized BMS for your options.
– Power Indicator to monitor the battery
pack energy status.
- TUV ISO9001:2015 certificated to ensure battery quality.

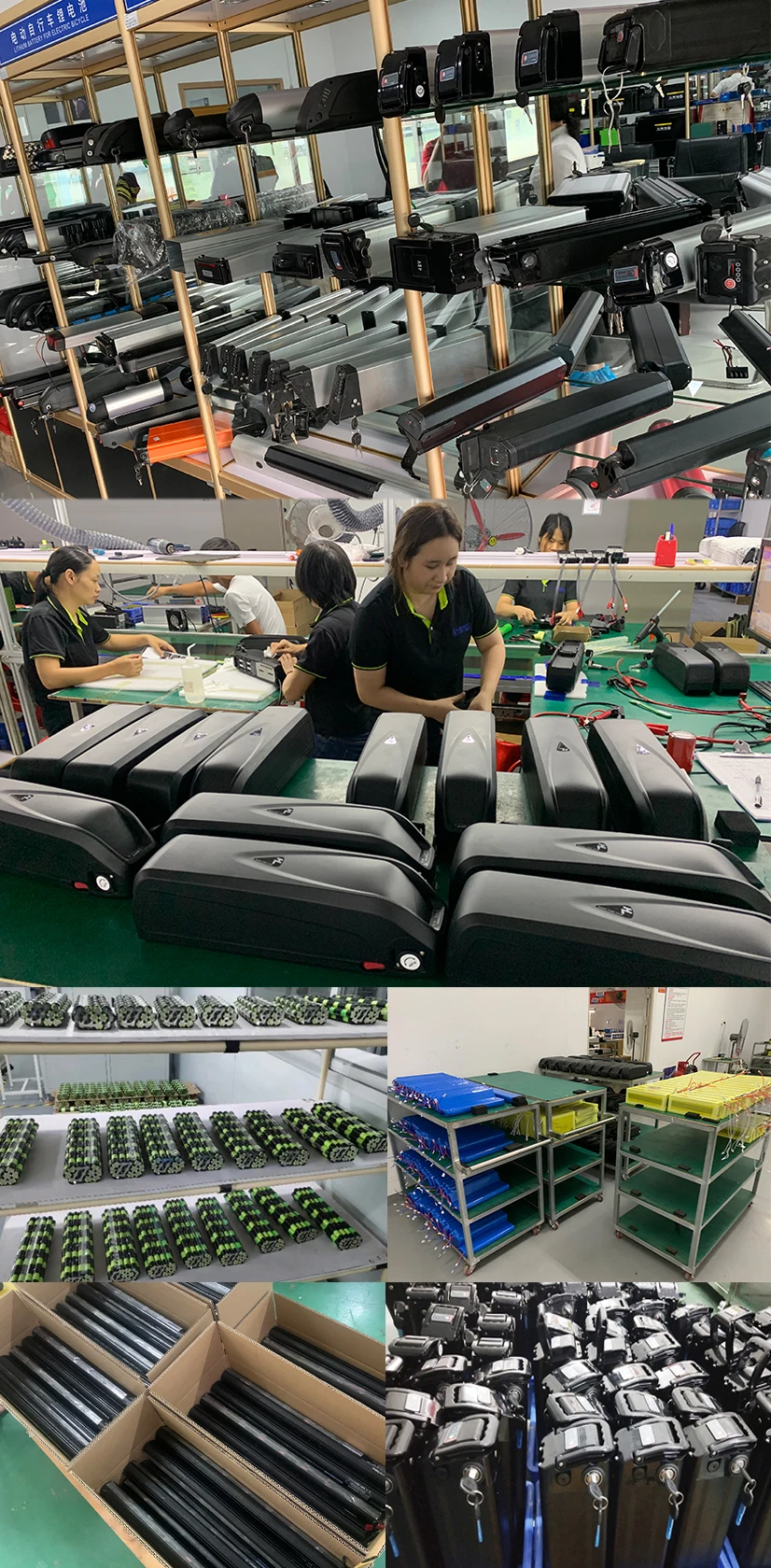

- 15 Years Lithium ion Battery Factory with competitive prices.
| | | | HL3 /48V 17.5Ah (SAMSUNG) | |
| Configuration | 13S5P | 13S5P | 13S5P | 13S5P |
| Nominal voltage | 48V | 48V | 48V | 48V |
| Nominal capacity | 13Ah | 14.5Ah | 17.5Ah | 20Ah |
| Charge voltage | | 54.6V | 54.6V | 54.6V |
| Standard charge current | ≤3(A) | ≤3(A) | ≤3(A) | ≤4(A) |
| Continuous discharge current | ≤25A | ≤30A | ≤30A | ≤40A |
| Discharge cut off voltage | 36.4V | 36.4V | 36.4V | 36.4V |
| Net weight | 4.3kg | 4.3kg | 4.3kg | 5.6kg |

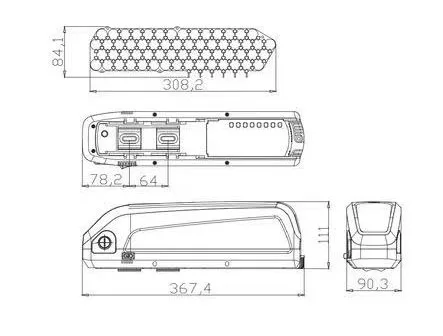

| Case dimension | 368*90*111mm | 368*90*111mm | 368*90*111mm | 368*90*112mm |
| Cycle life | 1000 times |
| Warranty | 1 year |
| BMS function | over-charge,over-discharge,over-current,short circuit |
| Fit motors | ≤1000W |
| Charge temperature | 0 ~ 45°C |
| Discharge temperature | -20 ~ 60°C |
| Available colors | Black |
| Charge method | CC/CV |
| Charge port | XLR interface or appointed |

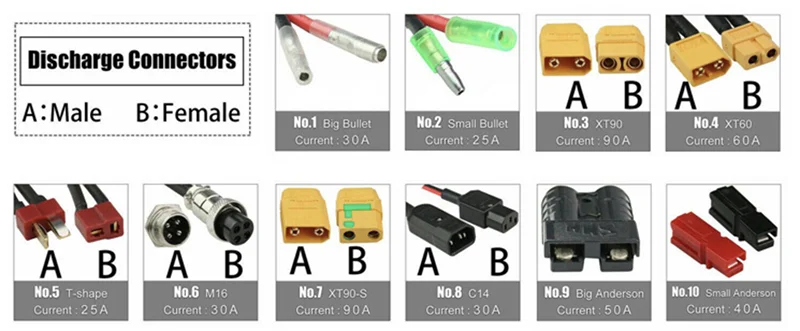

| Discharge port/Output port | Anderson or apppinted / USB | |
Hailong 4 Pin Ebike Lithium Battery Pack
Models: 36V 13Ah/36V 15Ah/36V 18Ah/36V 20Ah/48V 13Ah/48V 15Ah/48V 20Ah
Welcome enquiry for quotation right now.
Hailong 5 Pin Ebike Lithium Battery Pack
Models: 36V 13Ah/36V 15Ah/36V 18Ah/36V 20Ah/48V 13Ah/48V 15Ah/48V 20Ah
Welcome enquiry for quotation right now.
FAQ
Q: What type of electric bike battery?
A: It is a Li-ion battery, Chemical is Li(NiCoMn)O2.
Q: What is the difference between a Li-ion battery,Ni-Mn battery and Lead acid battery?
A: E-bike Li-ion battery have longer cycle life,normal cycle life is 800-1000 times, and also with light weight,small size, No memory effect,Nontoxic, environmental friendly.
Q: What's the temperature range of charge and discharge?
A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C
Q: What kind of cells are used on this electric bicycle battery?
A: Different capacities with different cells, we make the battery with original A grade Brand and high-quality domestic cells, all can be customized as your requests.
Q: Does your e-bike battery come with a charger?
A: All of our e-bike batteries come with charger.We have normal charger and fast charger. If you need fast charger please contact with us.
Q: Do your electric bike batteries come with BMS?
A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.
Q: Can you provide OEM and ODM service?
A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.
